Compact, lightweight, and versatile for aerial railway light works.

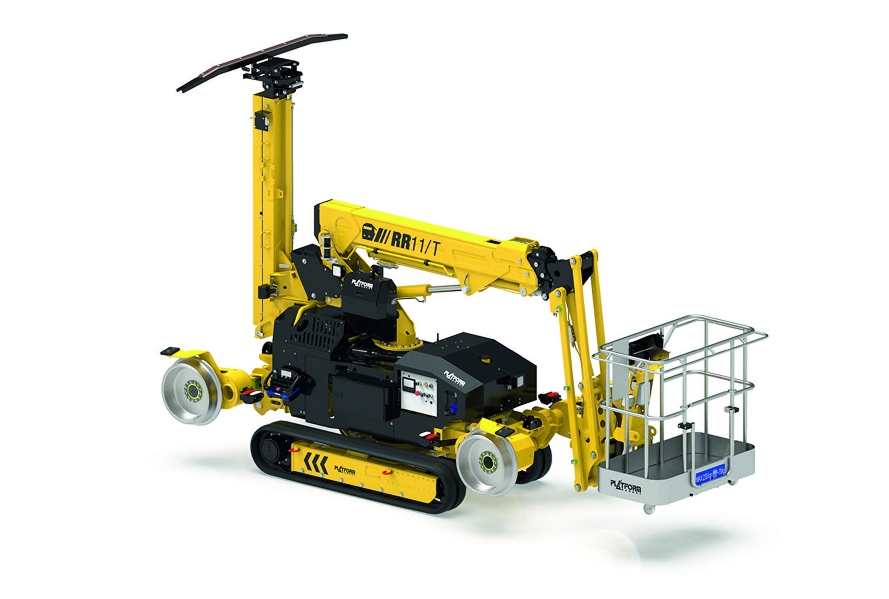

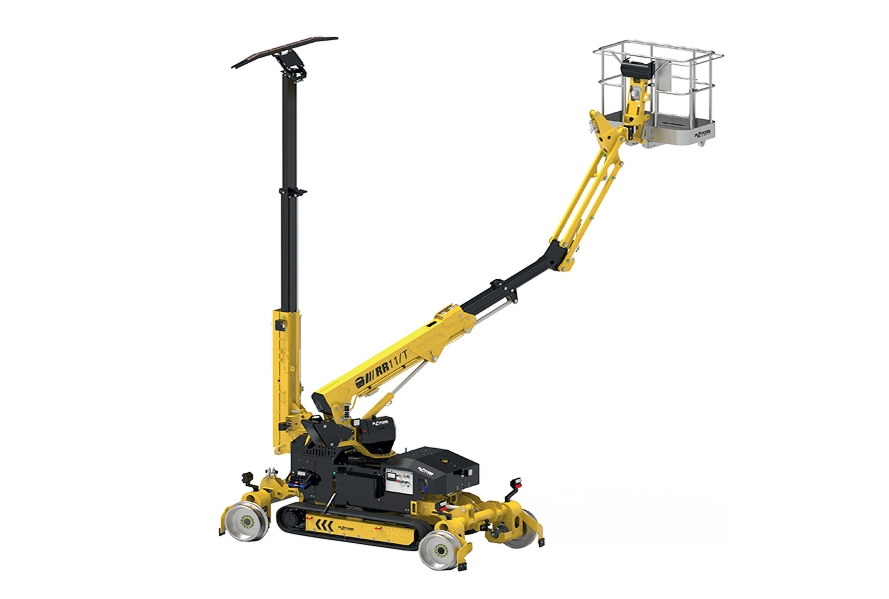

The new RR11T is the small aerial telescopic platform recently developed by Platform Basket in order to make elevated railway maintenance extremely easy.
Main Technical Features
● 230 Kg basket self-working load
● 10,50 m working height
● 5,70 m side outreach
● Two-seater basket
● Self-levelling of the upper structure
● Independent drive transmission on tracks & railway
● Diesel Kubota engine 10,5 kW
● Towable on regular 3,5 Ton GVW trailers
● Removable and interchangeable Basket

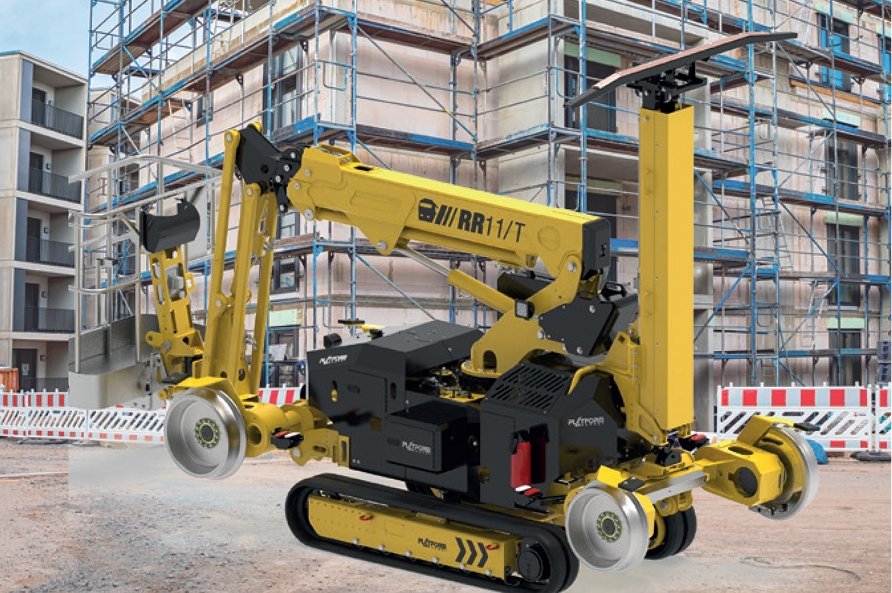

The structure of the RR11T is composed of a base car designed on track for road and off-road use that offers excellent grip on the ground in any ground condition together with a low specific load particularly designed to allow its movement even in the presence of delicate floors of railway stations.
The transmission is realized with independent moto-wheels both for the control of the tracked carriage and for the transmission on railway wheels. Each railway moto-wheel is equipped with a negative brake to guarantee the stopping of the equipment in every condition of the absence of motive power. In combination with a two-speed system,
RR11T can be used at a speed of up to 10km/h on the railways.
